Material Introduction
Advanced architectural porcelains, because of their special crystal framework and chemical bond features, reveal performance advantages that metals and polymer materials can not match in extreme environments. Alumina (Al Two O THREE), zirconium oxide (ZrO ₂), silicon carbide (SiC) and silicon nitride (Si two N FOUR) are the 4 major mainstream design ceramics, and there are necessary distinctions in their microstructures: Al ₂ O ₃ belongs to the hexagonal crystal system and counts on strong ionic bonds; ZrO ₂ has three crystal forms: monoclinic (m), tetragonal (t) and cubic (c), and obtains special mechanical properties with phase modification strengthening mechanism; SiC and Si Three N ₄ are non-oxide ceramics with covalent bonds as the major component, and have stronger chemical security. These architectural differences straight lead to significant distinctions in the prep work procedure, physical homes and engineering applications of the 4. This article will methodically analyze the preparation-structure-performance connection of these four ceramics from the viewpoint of products scientific research, and discover their leads for commercial application.
(Alumina Ceramic)
Preparation procedure and microstructure control
In terms of preparation procedure, the 4 porcelains show apparent differences in technical courses. Alumina porcelains utilize a relatively traditional sintering process, normally making use of α-Al two O six powder with a purity of greater than 99.5%, and sintering at 1600-1800 ° C after dry pushing. The secret to its microstructure control is to prevent unusual grain growth, and 0.1-0.5 wt% MgO is typically added as a grain limit diffusion prevention. Zirconia porcelains require to introduce stabilizers such as 3mol% Y TWO O four to maintain the metastable tetragonal phase (t-ZrO two), and make use of low-temperature sintering at 1450-1550 ° C to prevent too much grain growth. The core procedure challenge lies in precisely managing the t → m phase shift temperature window (Ms point). Considering that silicon carbide has a covalent bond proportion of as much as 88%, solid-state sintering requires a high temperature of greater than 2100 ° C and counts on sintering aids such as B-C-Al to create a fluid phase. The response sintering approach (RBSC) can achieve densification at 1400 ° C by infiltrating Si+C preforms with silicon melt, but 5-15% free Si will stay. The preparation of silicon nitride is the most intricate, typically utilizing GPS (gas stress sintering) or HIP (warm isostatic pushing) processes, including Y ₂ O TWO-Al ₂ O four collection sintering help to form an intercrystalline glass stage, and warm therapy after sintering to crystallize the glass phase can substantially boost high-temperature efficiency.
( Zirconia Ceramic)
Contrast of mechanical homes and strengthening device
Mechanical residential properties are the core evaluation indications of structural porcelains. The 4 sorts of products reveal completely various strengthening mechanisms:
( Mechanical properties comparison of advanced ceramics)
Alumina generally counts on great grain strengthening. When the grain size is lowered from 10μm to 1μm, the toughness can be enhanced by 2-3 times. The superb durability of zirconia originates from the stress-induced phase makeover device. The stress field at the fracture suggestion activates the t → m stage makeover accompanied by a 4% volume development, leading to a compressive tension securing effect. Silicon carbide can improve the grain border bonding strength through solid solution of aspects such as Al-N-B, while the rod-shaped β-Si four N ₄ grains of silicon nitride can create a pull-out impact comparable to fiber toughening. Split deflection and connecting contribute to the enhancement of toughness. It deserves keeping in mind that by creating multiphase porcelains such as ZrO TWO-Si Six N Four or SiC-Al Two O TWO, a selection of toughening mechanisms can be collaborated to make KIC exceed 15MPa · m ¹/ ².
Thermophysical residential properties and high-temperature actions
High-temperature security is the vital benefit of architectural ceramics that identifies them from traditional products:
(Thermophysical properties of engineering ceramics)
Silicon carbide shows the best thermal management efficiency, with a thermal conductivity of approximately 170W/m · K(similar to light weight aluminum alloy), which is because of its basic Si-C tetrahedral structure and high phonon propagation price. The low thermal development coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have outstanding thermal shock resistance, and the critical ΔT value can get to 800 ° C, which is particularly ideal for repeated thermal biking atmospheres. Although zirconium oxide has the greatest melting factor, the conditioning of the grain limit glass stage at heat will create a sharp decrease in stamina. By taking on nano-composite modern technology, it can be enhanced to 1500 ° C and still keep 500MPa toughness. Alumina will certainly experience grain boundary slip over 1000 ° C, and the addition of nano ZrO two can form a pinning impact to prevent high-temperature creep.
Chemical security and deterioration actions
In a destructive setting, the 4 kinds of ceramics show significantly various failure devices. Alumina will certainly liquify externally in strong acid (pH <2) and strong alkali (pH > 12) options, and the rust rate increases significantly with raising temperature, reaching 1mm/year in steaming focused hydrochloric acid. Zirconia has excellent tolerance to not natural acids, yet will undergo low temperature level destruction (LTD) in water vapor settings above 300 ° C, and the t → m phase transition will certainly cause the formation of a microscopic crack network. The SiO two protective layer based on the surface of silicon carbide gives it superb oxidation resistance below 1200 ° C, but soluble silicates will be generated in molten antacids metal atmospheres. The corrosion habits of silicon nitride is anisotropic, and the rust price along the c-axis is 3-5 times that of the a-axis. NH Five and Si(OH)four will certainly be generated in high-temperature and high-pressure water vapor, bring about material bosom. By optimizing the composition, such as preparing O’-SiAlON ceramics, the alkali corrosion resistance can be enhanced by more than 10 times.

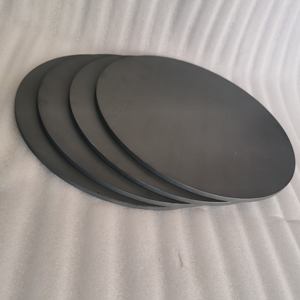

( Silicon Carbide Disc)
Normal Design Applications and Situation Studies
In the aerospace area, NASA utilizes reaction-sintered SiC for the leading edge elements of the X-43A hypersonic aircraft, which can endure 1700 ° C wind resistant home heating. GE Air travel utilizes HIP-Si six N four to produce turbine rotor blades, which is 60% lighter than nickel-based alloys and enables greater operating temperature levels. In the medical area, the crack toughness of 3Y-TZP zirconia all-ceramic crowns has actually gotten to 1400MPa, and the life span can be encompassed greater than 15 years through surface area gradient nano-processing. In the semiconductor market, high-purity Al two O six porcelains (99.99%) are made use of as tooth cavity products for wafer etching tools, and the plasma corrosion price is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.
Technical challenges and development trends
The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm parts < 0.1 mm ), and high production price of silicon nitride(aerospace-grade HIP-Si five N ₄ gets to $ 2000/kg). The frontier development instructions are focused on: ① Bionic framework style(such as covering split framework to boost sturdiness by 5 times); ② Ultra-high temperature sintering modern technology( such as stimulate plasma sintering can achieve densification within 10 minutes); five Smart self-healing porcelains (containing low-temperature eutectic phase can self-heal fractures at 800 ° C); four Additive production innovation (photocuring 3D printing accuracy has actually reached ± 25μm).
( Silicon Nitride Ceramics Tube)
Future advancement trends
In a detailed contrast, alumina will still control the conventional ceramic market with its cost advantage, zirconia is irreplaceable in the biomedical field, silicon carbide is the favored material for extreme atmospheres, and silicon nitride has great possible in the area of premium equipment. In the next 5-10 years, via the combination of multi-scale architectural policy and intelligent manufacturing modern technology, the efficiency boundaries of engineering porcelains are anticipated to attain brand-new advancements: for instance, the style of nano-layered SiC/C ceramics can accomplish sturdiness of 15MPa · m ONE/ TWO, and the thermal conductivity of graphene-modified Al ₂ O six can be increased to 65W/m · K. With the advancement of the “double carbon” approach, the application range of these high-performance porcelains in brand-new energy (gas cell diaphragms, hydrogen storage space products), green manufacturing (wear-resistant parts life enhanced by 3-5 times) and various other fields is expected to keep an ordinary annual development rate of more than 12%.
